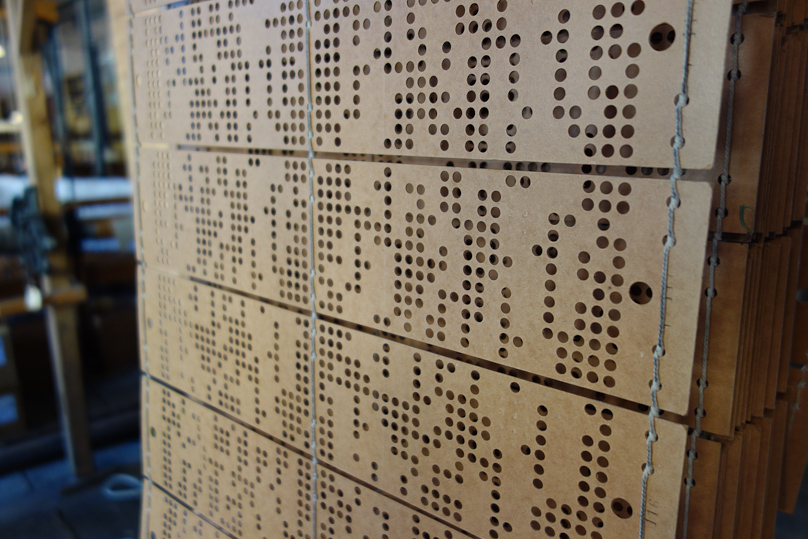

There is one card per thread of the weft. The holes are a matrix 12 high by 50 wide. Each hole presumably controls one headle, through which one warp thread passes. Depending on whether there is a hole or not in the card, the headle is raised or not.

April 20, 2015
